Productdetails:
|

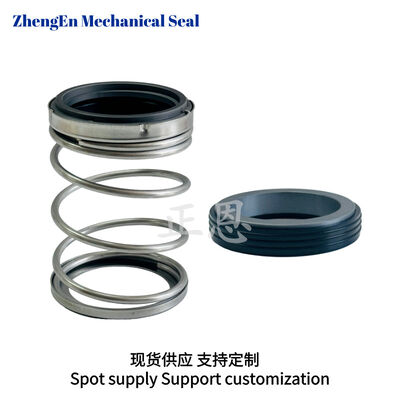

| Oorsprong: | Guangzhou, China | Stijl: | Paco Mechanisch zegel |
|---|---|---|---|
| Afmetingen: | Afhankelijk van je model. | Stationaire ring: | Tc, siliciumcarbide |
| Vervanging: | Vulcan Type Paco Vervanger | Koolstofzegel: | Afdichting van de as |
| Lijne snelheid: | ≤ 20 m/s | Sleutelwoorden: | Bellows waterpomp |
| temperatuurbereik: | Tot 120°C | Lagers: | Lager waterpomp |
| Markeren: | Grundfos pacwaterpomp,Grundfos mechanische gesloten pacwaterpomp,LF/CL/KP pacwaterpomp |
||
|
Temperatuur
|
-20oC tot 200oC, afhankelijk van het elastomeer
|
|
Druk
|
tot 25 bar
|
|
Versnelling
|
Tot 20 m/s
|
|
Grootte
|
14-65 mm |
|
Gezicht
|
Carbon, SiC, TC
|
|
Zitting
|
SiC, TC
|
|
O-ringen
|
NBR, EPDM, VITON, Aflas, Kalrez, Chemraz enz.
|
|
Lente
|
SS304, SS316
|
|
Metalen onderdelen
|
SS304, SS316
|
| Model | d1 ((mm) | d3 | d7 | 11 | 13 |
| 960-14 | 14 | 24.5 | 25 | 35 | 8 |
| 960-16 | 16 | 26.8 | 27 | 35 | 8 |
| 960-18 | 18 | 31.8 | 33 | 37.5 | 10 |
| 960-20 | 20 | 32.5 | 35 | 37.5 | 10 |
| 960-22 | 22 | 36.5 | 37 | 37.5 | 10 |
| 960-24 | 24 | 38.8 | 39 | 40 | 10 |
| 960-25 | 25 | 38.8 | 40 | 40 | 10 |
| 960-28 | 28 | 46.5 | 43 | 42.5 | 10 |
| 960-30 | 30 | 46.5 | 45 | 42.5 | 10 |
| 960-32 | 32 | 46.5 | 48 | 42.5 | 10 |
| 960-33 | 33 | 49.5 | 48 | 42.5 | 10 |
| 960-35 | 35 | 49.5 | 50 | 42.5 |
11 |
| Model | d1 ((mm) | d3 | d7 | 11 | 13 |
| 960-38 | 38 | 54 | 56 | 45 | 11 |
| 960-40 | 40 | 57 | 58 | 45 | 11 |
| 960-43 | 43 | 61.5 | 61 | 45 | 11 |
| 960-45 | 45 | 61.5 | 63 | 45 | 11 |
| 960-48 | 43 | 70.6 | 66 | 45 | 11 |
| 960-50 | 50 | 70.6 | 70 | 47.5 | 11 |
| 960-53 | 53 | 70.6 | 73 | 47.5 | 12 |
| 960-55 | 55 | 76 | 75 | 47.5 | 12 |
| 960 tot en met 58 | 58 | 79.6 | 78 | 52.5 | 12 |
| 960-60 | 60 | 79.6 | 80 | 52.5 | 12 |
| 960 tot en met 63 | 63 | 84.6 | 83 | 52.5 | 12 |
| 960-65 | 65 | 84.6 | 85 | 52.5 | 13 |
