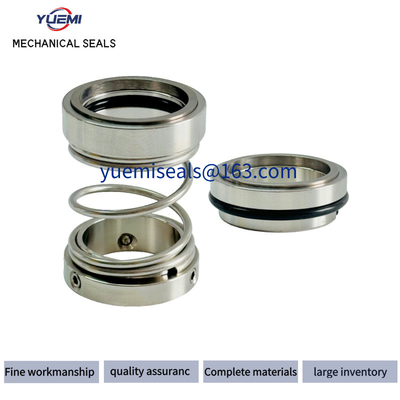

Productdetails:
|
| Toepassing: | Waterpomp | Standaard of niet-standaard: | standaard |
|---|---|---|---|
| Pakket: | Standaard exportpakket | Functie: | Fristampomp |
| Materiaal: | Siliciumcarbide | Handelsmerk: | YUEMI |
| Exportgebied: | over de hele wereld. | Posten: | 1527 Mechanische afdichting |
| Sleutelwoorden: | Mechanische afdichting | ||
| Markeren: | Mechanische afdichting van de serie 1527,Mechanische afdichting van roestvrij staal,brandpomp Mechanische afdichting |
||
| Materiaal | |
| Zegelring | Auto, SIC, SIC, TC |
| Secundair zegel | NBR,Viton,EPDM enz. |
| met een gewicht van niet meer dan 50 kg | 304,316HAST.C. |
| Operatiegrenzen | |
| Temperatuur | -20 tot 180oC |
| Versnelling | 15 m/s |
| Druk | 10 bar |
| Standaardgrootte | 18-100 mm |
| Tipe zegel | 1527 reeks |
| Grootte van de as | Volledige maat ((10-100 mm) |
| Temperatuur | -20 graden tot 180 graden, afhankelijk van de elastomeer |
| Druk | niet minder dan 1 MPa |
| Versnelling | niet minder dan 15 m/s |
| Gezicht | SIC,TC |
| Zitting | Koolstof, Sic, Tc. |
| Elastomeer | NBR, EPDM, VITON, |
| Lente | SS304 SS316 |
| Metalen onderdelen | SS304 SS316 |
| 1527 Afmetingen ((mm) | ||||||||
| Grootte | d | D3 | D6 | D7 | D8 | L3 | L4 | L8 |
| 18 | 18 | 32 | 27 | 33 | 3 | 35 | 10 | 17 |
| 20 | 20 | 34 | 29 | 35 | 3 | 35.0 | 10.0 | 17.0 |
| 22 | 22 | 36 | 31 | 37 | 3 | 35.0 | 10.0 | 17.0 |
| 24 | 24 | 38 | 33 | 39 | 3 | 40.0 | 10.0 | 17.0 |
| 25 | 25 | 39 | 34 | 40 | 3 | 40.0 | 10.0 | 17.0 |
| 28 | 28 | 42 | 37 | 43 | 3 | 40.0 | 10.0 | 17.0 |
| 30 | 30 | 44 | 39 | 45 | 3 | 40.0 | 10.0 | 17.0 |
| 32 | 32 | 46 | 42 | 48 | 3 | 45.0 | 10.0 | 17.0 |
| 33 | 33 | 47 | 42 | 48 | 3 | 45.0 | 10.0 | 17.0 |
| 35 | 35 | 49 | 44 | 50 | 3 | 45.0 | 10.0 | 17.0 |
| 38 | 38 | 54 | 49 | 56 | 4 | 44.0 | 11.0 | 18.0 |
| 40 | 40 | 56 | 51 | 58 | 4 | 44.0 | 11.0 | 18.0 |
| 43 | 43 | 59 | 54 | 61 | 4 | 49.0 | 11.0 | 18.0 |
| 45 | 45 | 61 | 56 | 63 | 4 | 49.0 | 11.0 | 18.0 |
| 48 | 48 | 64 | 59 | 66 | 4 | 49.0 | 11.0 | 18.0 |
| 50 | 50 | 66 | 62 | 70 | 4 | 47.0 | 13.0 | 20.0 |
| 53 | 53 | 69 | 65 | 73 | 4 | 57.0 | 13.0 | 20.0 |
| 55 | 55 | 71 | 67 | 75 | 4 | 57.0 | 13.0 | 20.0 |
| 58 | 58 | 78 | 70 | 78 | 4 | 57.0 | 13.0 | 20.0 |
| 60 | 60 | 80 | 72 | 80 | 4 | 57.0 | 13.0 | 20.0 |
| 63 | 63 | 83 | 75 | 83 | 4 | 57.0 | 13.0 | 20.0 |
| 65 | 65 | 85 | 77 | 85 | 4 | 67.0 | 13.0 | 20.0 |
| 68 | 68 | 88 | 81 | 90 | 4 | 64.7 | 15.3 | 20.0 |
| 70 | 70 | 90 | 83 | 92 | 4 | 64.7 | 15.3 | 20.0 |
| 75 | 75 | 99 | 88 | 97 | 4 | 64.7 | 15.3 | 20.0 |
| 80 | 80 | 104 | 95 | 105 | 4 | 74.3 | 15.7 | 22.5 |
| 85 | 85 | 109 | 100 | 110 | 4 | 74.3 | 15.7 | 22.5 |
| 90 | 90 | 114 | 105 | 115 | 4 | 74.3 | 15.7 | 22.5 |
| 95 | 95 | 119 | 110 | 120 | 4 | 74.3 | 15.7 | 22.5 |
| 100 | 100 | 124 | 115 | 125 | 4 | 74.3 | 15.7 | 22.5 |
